The right product at the right place

When selecting a membrane for a building renovation or construction, it is important to consider several factors such as the structure of the building, the choice of floor covering and the type of installation. It is essential to look beyond an acoustic result displayed on a product. Acoustic comfort is much more than a number.

We are preparing your document.

Please be patient, this can take more than 30 seconds.

There, your document is ready and downloading!

Thank you

Structure
Assembly components
Floor type
Installation type
Ceiling type
Number of Gypsum
AIIC
SF2-AYG | Wood | Floating | AcoustiTECH VP | Floating | Concrete image

SF2-AYG | Wood | Floating | AcoustiTECH VP | Floating | Concrete

Acoustic performance
AIIC: 59 to 62
ASTC: 58 to 60

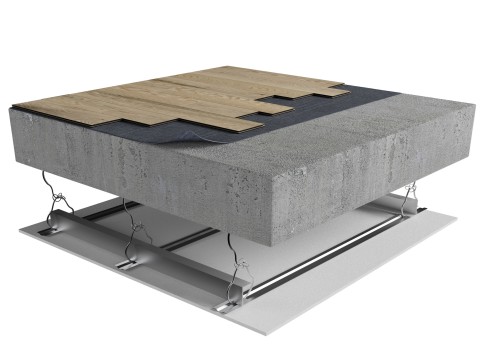

GK1-00D | Wood | Floating | AcoustiTECH VP | Floating | Concrete | Furring strips | Ceiling image

GK1-00D | Wood | Floating | AcoustiTECH VP | Floating | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

BGC-51S | Wood | Glued | AcoustiTECH 7000 | Glued | Concrete image

BGC-51S | Wood | Glued | AcoustiTECH 7000 | Glued | Concrete

Acoustic performance
AIIC: 58 to 62
ASTC: 58 to 60

39I-A5L | Wood | Glued | AcoustiTECH 7000 | Glued | Concrete | Furring strips | Ceiling image

39I-A5L | Wood | Glued | AcoustiTECH 7000 | Glued | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

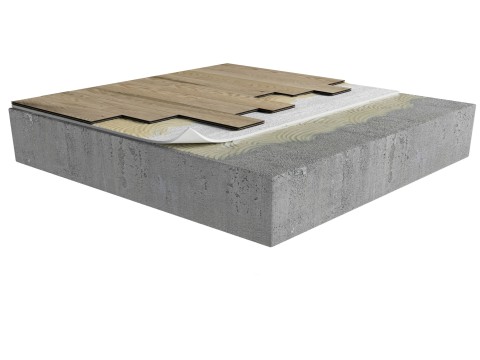

LU4-XBZ | Wood | Glued | AcoustiTECH 5000 | Glued | Concrete image

LU4-XBZ | Wood | Glued | AcoustiTECH 5000 | Glued | Concrete

Acoustic performance
AIIC: 57 to 60
ASTC: 58 to 60

915-9DH | Wood | Glued | AcoustiTECH 5000 | Glued | Concrete | Furring strips | Ceiling image

915-9DH | Wood | Glued | AcoustiTECH 5000 | Glued | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

O75-A57 | Wood | Glued | AcoustiTECH 3500 | Glued | Concrete | Furring strips | Ceiling image

O75-A57 | Wood | Glued | AcoustiTECH 3500 | Glued | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

WB0-6J8 | Wood | Glued | AcoustiTECH 3500 | Glued | Concrete image

WB0-6J8 | Wood | Glued | AcoustiTECH 3500 | Glued | Concrete

Acoustic performance
AIIC: 55 to 58
ASTC: 58 to 60

DFN-OV0 | Wood | Glued | AcoustiTECH Lead 3.3 | Glued | Concrete image

DFN-OV0 | Wood | Glued | AcoustiTECH Lead 3.3 | Glued | Concrete

Acoustic performance
AIIC: 55 to 58
ASTC: 58 to 60

FIR-VNL | Wood | Glued | AcoustiTECH Lead 4.5 | Glued | Concrete image

FIR-VNL | Wood | Glued | AcoustiTECH Lead 4.5 | Glued | Concrete

Acoustic performance
AIIC: 57 to 60
ASTC: 58 to 60

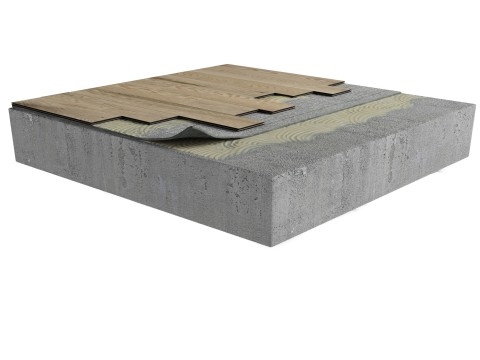

M8A-MPQ | Wood | Glued | AcoustiTECH Lead 6 | Glued | Concrete image

M8A-MPQ | Wood | Glued | AcoustiTECH Lead 6 | Glued | Concrete

Acoustic performance
AIIC: 58 to 61
ASTC: 58 to 60

21H-PE7 | Wood | Glued | AcoustiTECH Lead 3.3 | Glued | Concrete | Furring strips | Ceiling image

21H-PE7 | Wood | Glued | AcoustiTECH Lead 3.3 | Glued | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

YR7-HGS | Wood | Glued | AcoustiTECH Lead 4.5 | Glued | Concrete | Furring strips | Ceiling image

YR7-HGS | Wood | Glued | AcoustiTECH Lead 4.5 | Glued | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

3RO-FET | Wood | Glued | AcoustiTECH Lead 6 | Glued | Concrete | Furring strips | Ceiling image

3RO-FET | Wood | Glued | AcoustiTECH Lead 6 | Glued | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

FCR-M06 | Wood | Nailed down | Fermacell 2E32 | Concrete image

FCR-M06 | Wood | Nailed down | Fermacell 2E32 | Concrete

Acoustic performance
AIIC: 58 to 62
ASTC: 60 to 62

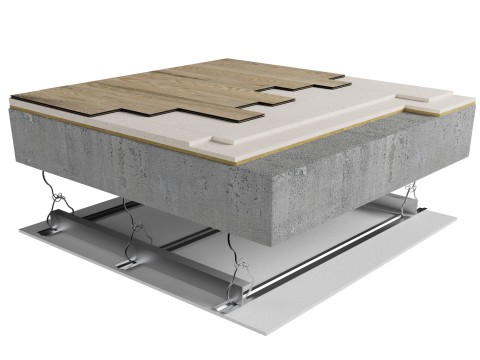

UI3-NVB | Wood | Nailed down | Fermacell 2E32 | Concrete | Furring strips | Ceiling image

UI3-NVB | Wood | Nailed down | Fermacell 2E32 | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

IWV-1ZQ | Vinyl | Floating | AcoustiTECH LV | Floating | Concrete image

IWV-1ZQ | Vinyl | Floating | AcoustiTECH LV | Floating | Concrete

Acoustic performance
AIIC: 58 to 61
ASTC: 58 to 60

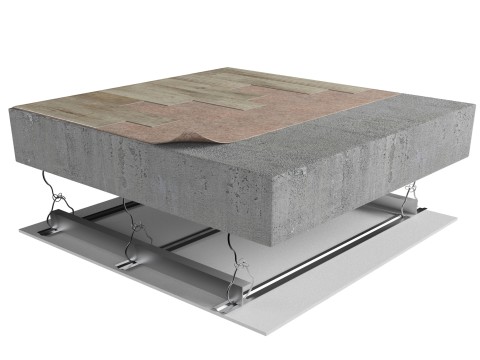

440-38Q | Vinyl | Floating | AcoustiTECH LV | Floating | Concrete | Furring strips | Ceiling image

440-38Q | Vinyl | Floating | AcoustiTECH LV | Floating | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 65 to 73
ASTC: 65 to 70

A5Y-O2N | Ceramic | Mortar | AcoustiTECH Ceramic | Glued | Concrete image

A5Y-O2N | Ceramic | Mortar | AcoustiTECH Ceramic | Glued | Concrete

Acoustic performance
AIIC: 50 to 56
ASTC: 57 to 62

LI5-2ES | Ceramic | Mortar | AcoustiTECH Ceramic | Glued | Concrete | Furring strips | Ceiling image

LI5-2ES | Ceramic | Mortar | AcoustiTECH Ceramic | Glued | Concrete | Furring strips | Ceiling

Acoustic performance
AIIC: 58 to 65
ASTC: 65 to 70

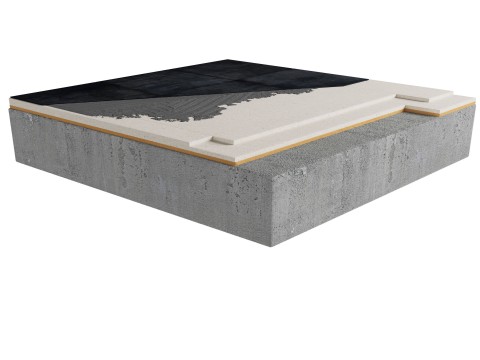

S06-YOT | Ceramic | Mortar | Fermacell 2E31 | Concrete image

S06-YOT | Ceramic | Mortar | Fermacell 2E31 | Concrete

Acoustic performance
AIIC: 60 to 62
ASTC: 59 to 63

4Y7-0Q0 | Laminate | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood |Resilient channels | Ceiling image

4Y7-0Q0 | Laminate | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood |Resilient channels | Ceiling

Acoustic performance
AIIC: 57 to 61
ASTC: 58 to 62

6XH-3VI | Laminate | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Acoustic isolator | Ceiling image

6XH-3VI | Laminate | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 58 to 62
ASTC: 58 to 62

OE3-P95 | Wood | Glued | AcoustiTECH Lead 3.3 | Glued | 1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Resilient channels | Ceiling image

OE3-P95 | Wood | Glued | AcoustiTECH Lead 3.3 | Glued | 1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 54 to 58
ASTC: 58 to 62

S13-NN3 | Wood | Glued | AcoustiTECH Lead 3.3 | Glued |1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Acoustic isolator | Ceiling image

S13-NN3 | Wood | Glued | AcoustiTECH Lead 3.3 | Glued |1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 57 to 61
ASTC: 58 to 62

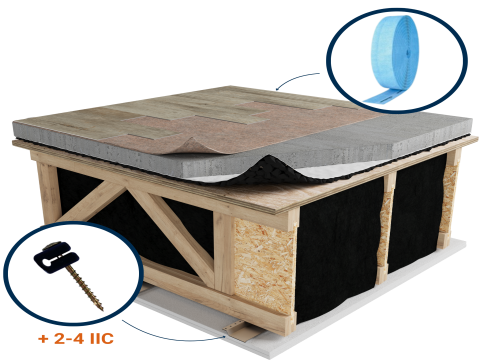

CGD-TCD | Vinyl | Floating | AcoustiTECH LV | Floating | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood | Resilient channels | Ceiling image

CGD-TCD | Vinyl | Floating | AcoustiTECH LV | Floating | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 57 to 61
ASTC: 58 to 62

NFO-5VT | Vinyl | Floating | AcoustiTECH LV | Floating | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood |  Acoustic isolator | Ceiling image

NFO-5VT | Vinyl | Floating | AcoustiTECH LV | Floating | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 58 to 62
ASTC: 58 to 62

SIC-UAO | Ceramic | Mortar | AcoustiTECH Ceramic | Glued |1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Resilient channels | Ceiling image

SIC-UAO | Ceramic | Mortar | AcoustiTECH Ceramic | Glued |1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 48 to 53
ASTC: 58 to 62

W9D-3YQ | Ceramic | Mortar | AcoustiTECH Ceramic | Glued | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood | Acoustic isolator | Ceiling image

W9D-3YQ | Ceramic | Mortar | AcoustiTECH Ceramic | Glued | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 51 to 56
ASTC: 58 to 62

BO6-NK4 | Wood | Floating | Insonofloor (Soprema) | Floating | Light wood | Acoustic isolator | Ceiling image

BO6-NK4 | Wood | Floating | Insonofloor (Soprema) | Floating | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 52 to 55
ASTC: 53 to 56

HXW-W2N | Laminate | Floating | Insonofloor (Soprema) | Floating | Light wood | Acoustic isolator | Ceiling image

HXW-W2N | Laminate | Floating | Insonofloor (Soprema) | Floating | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 52 to 55
ASTC: 53 to 56

2ES-TAE | Wood | Floating | AcoustiTECH VP | Floating | Fermacell 2E32 | Light wood | Resilient channels | Ceiling image

2ES-TAE | Wood | Floating | AcoustiTECH VP | Floating | Fermacell 2E32 | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 55 to 59
ASTC: 56 to 59

PHH-57N | Laminate | Floating | AcoustiTECH VP | Floating | Fermacell 2E32 | Light wood | Acoustic isolator | Ceiling image

PHH-57N | Laminate | Floating | AcoustiTECH VP | Floating | Fermacell 2E32 | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 58 to 62
ASTC: 59 to 61

R4L-LWD | Wood | Floating | Acoustiboard (Soprema) | Light wood | Acoustic isolator | Ceiling image

R4L-LWD | Wood | Floating | Acoustiboard (Soprema) | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 57 to 61
ASTC: 56 to 59

TZO-NQ1 | Laminate | Floating | Acoustiboard (Soprema) | Light wood | Acoustic isolator | Ceiling image

TZO-NQ1 | Laminate | Floating | Acoustiboard (Soprema) | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 57 to 61
ASTC: 56 to 59

6ZQ-GU8 | Wood | Floating | AcoustiTECH VP | Floating | Fermacell 2E32 | Light wood | Acoustic isolator | Ceiling image

6ZQ-GU8 | Wood | Floating | AcoustiTECH VP | Floating | Fermacell 2E32 | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 58 to 62
ASTC: 59 to 61

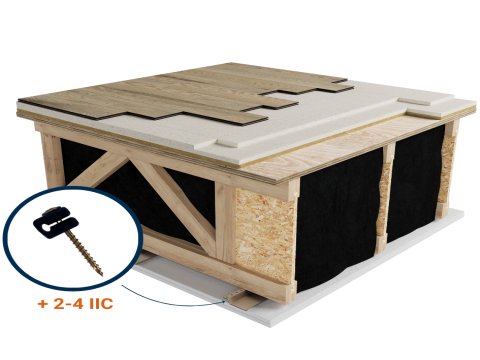

GPG-FTJ | Wood | Nailed down | Fermacell 2E32 | Light wood | Resilient channels | Ceiling image

GPG-FTJ | Wood | Nailed down | Fermacell 2E32 | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 54 to 57
ASTC: 57 to 59

UNT-EEI | Wood | Nailed down | Fermacell 2E32 | Light wood | Acoustic isolator | Ceiling image

UNT-EEI | Wood | Nailed down | Fermacell 2E32 | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 58 to 61
ASTC: 60 to 61

CZ0-7PE | Wood | Nailed down | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Resilient channels | Ceiling image

CZ0-7PE | Wood | Nailed down | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 60 to 63
ASTC: 60 to 62

20O-HNX | Wood | Nailed down | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Acoustic isolator | Ceiling image

20O-HNX | Wood | Nailed down | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 62 to 65
ASTC: 61 to 63

WPY-J5K | Vinyl | Floating | Fermacell 2E32 | Light wood | Resilient channels | Ceiling image

WPY-J5K | Vinyl | Floating | Fermacell 2E32 | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 54 to 56
ASTC: 57 to 59

DOG-U3S | Vinyl | Floating | Fermacell 2E32 | Light wood | Acoustic isolator | Ceiling image

DOG-U3S | Vinyl | Floating | Fermacell 2E32 | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 57 to 60
ASTC: 60 to 61

7JJ-6HS | Vinyl | Floating | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Floating | Light wood | Resilient channels | Ceiling image

7JJ-6HS | Vinyl | Floating | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Floating | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 58 to 62
ASTC: 60 to 61

PI8-Y3Q | Vinyl | Floating | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Acoustic isolator | Ceiling image

PI8-Y3Q | Vinyl | Floating | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 60 to 63
ASTC: 61 to 63

VRG-7ZM | Ceramic | Mortar | Sopraway NG2 (Soprema) | Glued | Light wood | Acoustic isolator | Ceiling image

VRG-7ZM | Ceramic | Mortar | Sopraway NG2 (Soprema) | Glued | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 47 to 52
ASTC: 54 to 57

OD8-D3G | Ceramic | Mortar | Fermacell 2E31 | Light wood | Resilient channels | Ceiling image

OD8-D3G | Ceramic | Mortar | Fermacell 2E31 | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 48 to 52
ASTC: 58 to 60

11M-WRW | Ceramic | Mortar | Fermacell 2E31 | Light wood | Acoustic isolator | Ceiling image

11M-WRW | Ceramic | Mortar | Fermacell 2E31 | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 52 to 56
ASTC: 60 to 62

8P7-OV1 | Ceramic | Mortar | 5/8'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Resilient channels | Ceiling image

8P7-OV1 | Ceramic | Mortar | 5/8'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Resilient channels | Ceiling

Acoustic performance
AIIC: 60 to 63
ASTC: 60 to 62

GYL-H4B | Ceramic | Mortar | 5/8'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Acoustic isolator | Ceiling image

GYL-H4B | Ceramic | Mortar | 5/8'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Light wood | Acoustic isolator | Ceiling

Acoustic performance
AIIC: 62 to 65
ASTC: 61 to 64

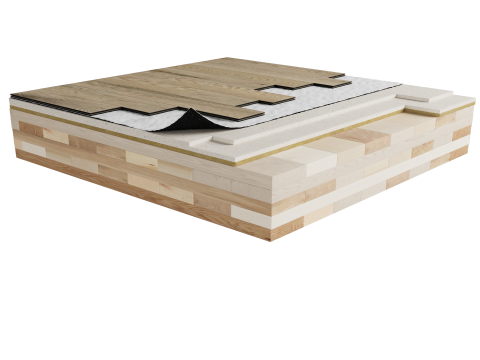

6LR-6BO | Wood | Floating | Insonofloor (Soprema) | Floating | Fermacell 2E32 | Mass timber image

6LR-6BO | Wood | Floating | Insonofloor (Soprema) | Floating | Fermacell 2E32 | Mass timber

Acoustic performance
AIIC: 43 to 46
ASTC: 39 to 41

3N4-CW4 | Laminate | Floating | Insonofloor (Soprema) | Floating | Fermacell 2E32 | Mass timber image

3N4-CW4 | Laminate | Floating | Insonofloor (Soprema) | Floating | Fermacell 2E32 | Mass timber

Acoustic performance
AIIC: 43 to 46
ASTC: 39 to 41

7F7-Z7P | Wood | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Mass timber image

7F7-Z7P | Wood | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Mass timber

Acoustic performance
AIIC: 47 to 51
ASTC: 53 to 55

GIJ-0K6 | Laminate | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Mass timber image

GIJ-0K6 | Laminate | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Mass timber

Acoustic performance
AIIC: 47 to 51
ASTC: 53 to 55

7IE-SVR | Wood | Floating | Insonofloor (Soprema) | Floating | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Mass timberFloating image

7IE-SVR | Wood | Floating | Insonofloor (Soprema) | Floating | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Mass timberFloating

Acoustic performance
AIIC: 53 to 56
ASTC: 54 to 58

X85-HVY | Laminate | Floating | Insonofloor (Soprema) | Floating | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Mass timber image

X85-HVY | Laminate | Floating | Insonofloor (Soprema) | Floating | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Mass timber

Acoustic performance
AIIC: 53 to 56
ASTC: 54 to 58

7DO-RQ4 | Wood | Nailed down | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Mass timber image

7DO-RQ4 | Wood | Nailed down | 1/2'' plywood | 5/8'' plywood | AcoustiTECH SOFIX | AcoustiTECH Lead 6 | Mass timber

Acoustic performance
AIIC: 54 to 58
ASTC: 54 to 58

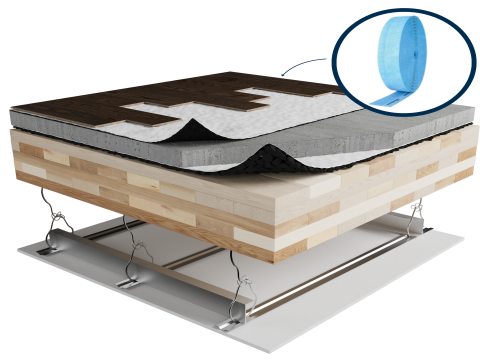

LNE-Y86 | Wood | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Mass timber | Furring strips | Ceiling image

LNE-Y86 | Wood | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Mass timber | Furring strips | Ceiling

Acoustic performance
AIIC: 58 to 62
ASTC: 63 to 67

IRK-4M1 | Laminate | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping  | Insonomat (Soprema) | Mass timber | Furring strips | Ceiling image

IRK-4M1 | Laminate | Floating | Insonofloor (Soprema) | Floating | 1“1/2 concrete topping | Insonomat (Soprema) | Mass timber | Furring strips | Ceiling

Acoustic performance
AIIC: 58 to 62
ASTC: 63 to 67

T47-RN3 | Wood | Floating | AcoustiTECH VP | Floating | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

T47-RN3 | Wood | Floating | AcoustiTECH VP | Floating | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 55 to 59
ASTC: 58 to 62

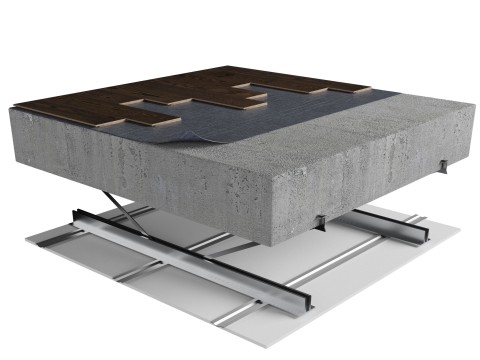

P4B-70L | Laminate | Floating | AcoustiTECH VP | Floating | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

P4B-70L | Laminate | Floating | AcoustiTECH VP | Floating | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 55 to 59
ASTC: 58 to 62

Z2F-T5Q | Wood | Floating | Insonofloor (Soprema) | Floating | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

Z2F-T5Q | Wood | Floating | Insonofloor (Soprema) | Floating | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 56 to 60
ASTC: 58 to 62

J37-GK7 | Laminate | Floating | Insonofloor (Soprema) | Floating | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

J37-GK7 | Laminate | Floating | Insonofloor (Soprema) | Floating | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 56 to 60
ASTC: 58 to 62

DB5-N69 | Wood | Glued | AcoustiTECH Lead 4.5 | Glued | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

DB5-N69 | Wood | Glued | AcoustiTECH Lead 4.5 | Glued | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 54 to 58
ASTC: 58 to 62

6LV-AOY | Wood | Glued | AcoustiTECH Lead 3.3 | Glued | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

6LV-AOY | Wood | Glued | AcoustiTECH Lead 3.3 | Glued | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 52 to 56
ASTC: 58 to 62

NAN-6YT | Wood | Glued | AcoustiTECH 7000 | Glued | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

NAN-6YT | Wood | Glued | AcoustiTECH 7000 | Glued | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 56 to 60
ASTC: 58 to 62

CBV-R4P | Wood | Glued | AcoustiTECH 5000 | Glued | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

CBV-R4P | Wood | Glued | AcoustiTECH 5000 | Glued | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 54 to 58
ASTC: 58 to 62

YZS-MED | Wood | Nailed down | Fermacell 2E32 | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling image

YZS-MED | Wood | Nailed down | Fermacell 2E32 | Concrete slab (approximately 3-4“) | Steel | Furring strips | Ceiling

Acoustic performance
AIIC: 53 to 58
ASTC: 58 to 62

We respect your privacy.
We use cookies to improve your browsing experience, deliver personalized ads or content, and analyze our traffic. By browsing our site, you consent to our use of cookies.
Privacy Policy


Accept
