AcoustiTECH Ceramic
LWF-3YQ | Ceramic | Mortar | AcoustiTECH Ceramic | Glued | 1“1/2 concrete topping| Insonomat (Soprema) | Light wood | Acoustic isolator | Ceiling
Acoustic performance
AIIC: 51 to 56
ASTC: 58 to 62
Assembly Details
Structure
Light wood
Assembly components
1“1/2 concrete topping, 5/8“ T&G plywood, AcoustiTECH Ceramic, Flexible mortar, Mortar, Acoustivibe System (Soprema), Insonomat (Soprema), RSIC-1 (PAC International)
Floor type
Ceramic
Installation type
Mortar
Glue
Adhesive AD-280
Ceiling type
Acoustic insulator
Number of Gypsum
2
*Other membranes available :

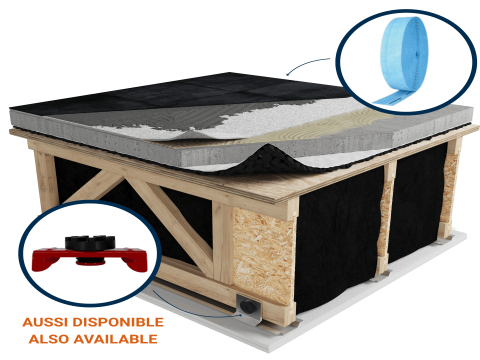

The Insonomat membrane (Soprema) can be substituted with the Silentcrete membrane (Soprema) and the Silent Floor Pur membrane (See assembly picture above).
*Perimeter decoupling: The use of Silent Edge (Rothoblaas) is strongly recommended to prevent lateral vibration transfer.
*Other ceiling isolators available:
Products in the assembly
Adhesive AD-280
Acoustivibe System (Soprema)
Insonomat (Soprema)
RSIC-1 (PAC International)
