AcoustiTECH Ceramic
LWF-UAO | Ceramic | Mortar | AcoustiTECH Ceramic | Glued |1“1/2 concrete topping | Insonomat (Soprema) | Light wood | Resilient channels | Ceiling
Acoustic performance
AIIC: 48 to 53
ASTC: 58 to 62
Assembly Details
Structure
Light wood
Assembly components
1“1/2 concrete topping, 5/8“ T&G plywood, AcoustiTECH Ceramic, Flexible mortar, Mortar, Insonomat (Soprema), RC-1 Boost (PAC International)
Floor type
Ceramic
Installation type
Mortar
Glue
Adhesive AD-280
Ceiling type
Resilient channels
Number of Gypsum
2
*Other membranes available :

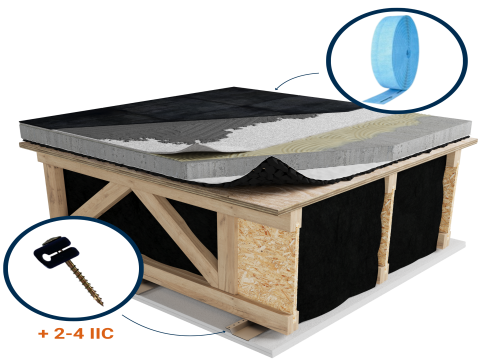

The Insonomat membrane (Soprema) can be substituted with the Silentcrete membrane (Soprema) and the Silent Floor Pur membrane (See assembly picture above).
*Perimeter decoupling: The use of Silent Edge (Rothoblaas) is strongly recommended to prevent lateral vibration transfer.
Products in the assembly
Adhesive AD-280
Insonomat (Soprema)

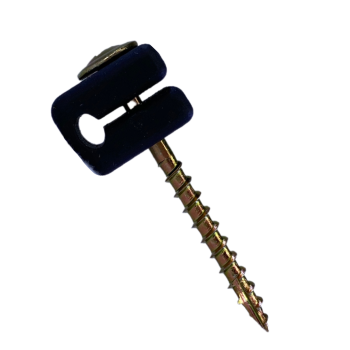

RC-1 Boost (PAC International)
