SONO/MAX25 Acoustic panel
SONO/MAX25

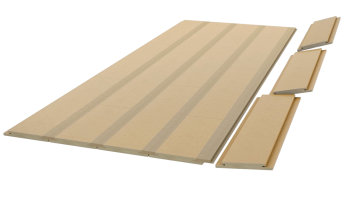

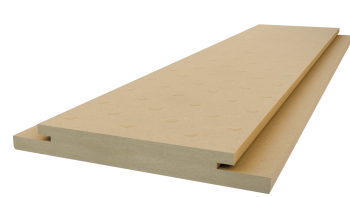

SONO/MAX25 is a soundproofing subfloor system made from recycled wood fibers. It is designed to reduce noise transmission between floors in multi-unit residential buildings, hotels, condos, and more. It offers a simple, durable, and effective solution for soundproofing residential and commercial floors. SONO/MAX25 is compatible with several types of floor coverings. The MDF battens that mechanically hold the SONO/MAX25 panels in place allow plywood or fiber cement board to be screwed onto SONO/MAX25.
Validate the conformity of this product in your condo
Insulating panel * including profiled slats
| THICKNESS | DIMENSIONS | WEIGHT | PANELS | FEET | WEIGHT/PAL |
| Inch | Inch | Unit | Palette | Palette | Lbs |

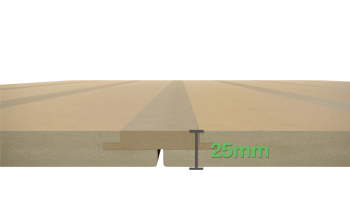

| 1" | 10"X48" | 4.40lbs | 160 | 640 | 705 |
Profiled slats
| THICKNESS | DIMENSIONS | WEIGHT | PIECE | FEET | WEIGHT/PAL |
| Inch | Inch | Unit | Palette | Palette | Lbs |
| 1" | 2"X48" | 1.73lbs | 150 | 600 | 260 |
